Foremost Smooth Wall Bins

Why buy Foremost smooth wall bins?

Because they hold their value and are easily resalable.
Ten and twelve gauge steel is thicker and sturdier than the competition.
Paint lasts longer because the metal is sandblasted before it’s painted.
Warranty 5 years on paint and 10 on structures.

Force Air Bins

Smooth wall hopper bottom bins with Foremost’s patented Force Air 360 system

The fan is mounted on a wider, single-piece, hollow skid. It draws air in and pushes the air up the legs into the bin through a series outlets that are strategically placed around the cone’s interior. The Force Air 360 system produces a uniform flow of air throughout the bin (as reported by the Prairie Agricultural Machinery Institute). This system also eliminates many of the inconveniences and costs associated with traditional aeration systems by integrating the existing structure of smooth wall hopper bins into the aeration system. This larger skid makes an excellent plenum and provides a stronger foundation than traditional bin bases.

Smooth Wall Bin Specifications

MODEL	BUSHELS	CUBIC FT.	MIN. AUGER	PEAK HEIGHT	ROOF DEGREE	HOPPER DEGREE	IMP. TONS	M. TON
1615	3270	3847	50′	29′ 3″	35	40	119	108
1620	4116	4843	60′	34′ 3″	35	40	150	136
1625	4962	5838	70′	39′ 3″	35	40	181	164
1630	5808	6833	80′	44′ 3″	35	40	181	164
1815	4180	4918	50′	30′ 8″	35	40	152	138
1820	5235	6159	60′	35′ 8″	35	40	191	173
1825	6290	7400	70′	40′ 8″	35	40	229	208
1830	7346	8642	80′	45′ 8″	35	40	229	208

View Brochure ^(pdf)

Foremost Smooth Wall Bins are available in a variety of configurations:
Force Air Grain Bin (FA), Fertilizer Bin (FT) or Fertilizer/Grain Hybrid (FTA).

Standard Features

	FA	FT	FTA
29″ Lid	•	•	•
Steel Base	•	•	•
Side Ladder	•	•	•

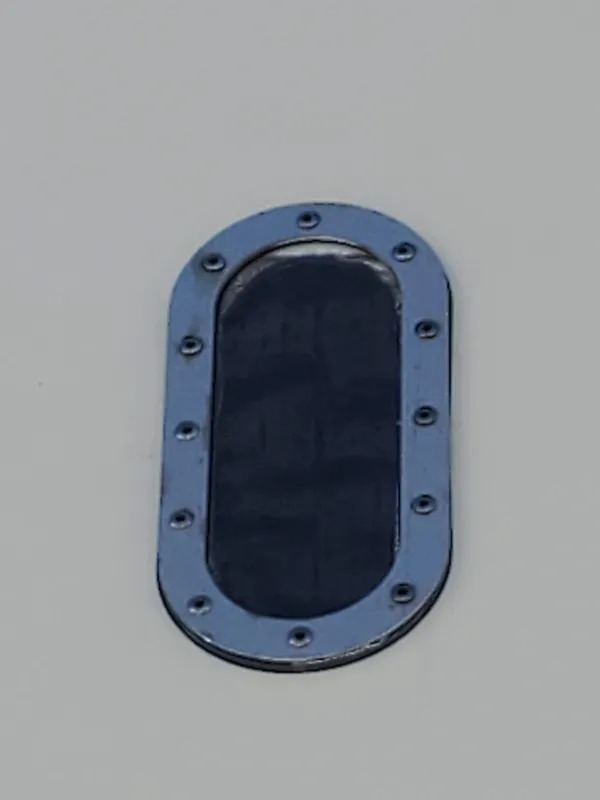

3 Large Site Glasses	•	•	•
Bottom Manway	•	•	•
Standard Hand Lever for Chute	•	•	•
Crank Style Handle for Chute
Lid Opener Handle	•	•	•
Manual Holder	•	•	•
Fan Box	•	n/a	•
Roof Vents	•
External Blast and Paint with 2 Part Polyurethane	•	•	•
Internal Coating Epoxy		•	•
Stainless Steel Air Ducts		n/a	•
Safety Ladder	•	•	•
